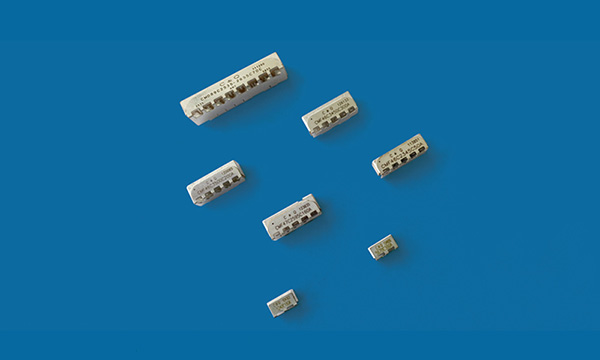

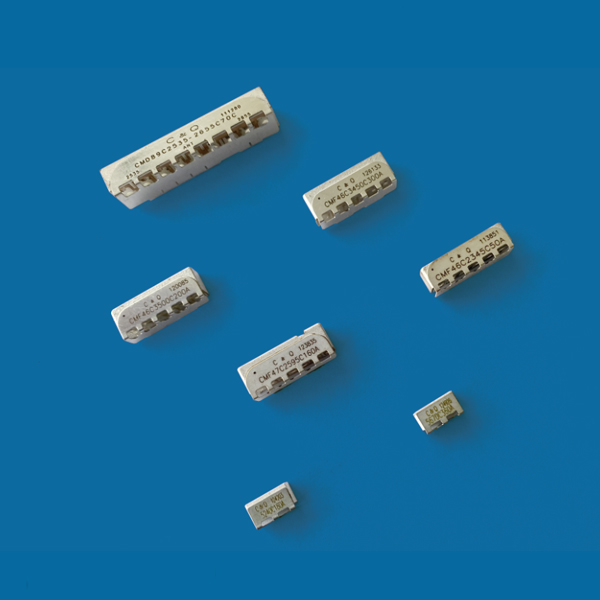

5G mini base station dielectric filter series
One of its key points is to realize the integration and miniaturization of antenna and filter.
Specification and model
center frequency
bandwidth
Insertion loss
wave
Standing wave ratio
(MHz) (MHz) (dB max) (dB max) CMF6R0076A 3500.0 fo±100 2.6 2 1.4 CMF6R0077A 3450.0 fo±150 1.8 1.2 1.5 CMF6R0078A 2345.0 fo±25 3.2 1 1.4 CMF7R0075A 2595.0 3.0 2.0 1.4 CMD9R0030A TX 2535 fo±35 2.1 0.8 1.3 RX 2655 fo±35 1.3 0.8 1.4 *The above is for reference only, and can be customized according to customer's index requirements and installation methods.
-
-
Dimension
Typical Characterstic
Principal Parameters
Note: The data for reference only, design it as customer’s request.
